Description

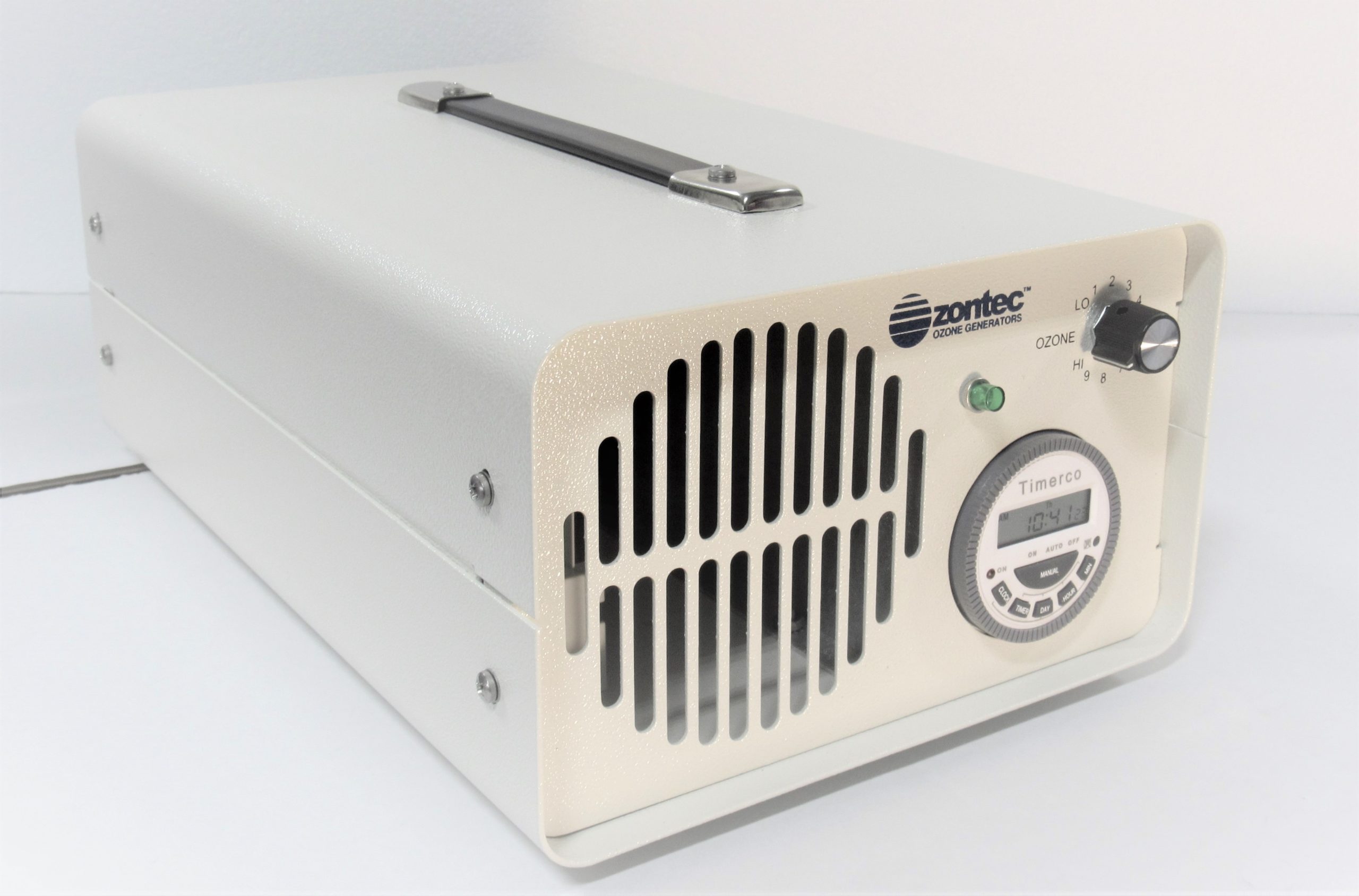

PA 1200 Industrial Ozone Generator
MANUAL
FEATURES AND SPECIFICATIONS
- An easily programmed timer
- 1,200 milligrams of Ozone per hour (measured with free air not pure O2 input)
- Beige Hammertone scratch resistant aluminum cabinet
- Two low maintenance parallel plate generators powered by 5000-volt heavy duty transformers
- Size: 14” long, 9” wide, 5.5” high. (36cm long x 23cm wide x 14cm high)
- Weight: 10.5 lbs (5.4 kg)
- Fan: 105 CFM. (3.0 m³/min)
- Power Requirement: 120 volt/57 watt/60 hertz
- Warranty: 2-year warranty
OZONE LEVEL CONTROL
- Review the FORMULA below and then:
- Set OZONE to desired setting
- Set TIMER to the desired setting
- Plug the unit into any convenient wall socket
- Switch the power to ON
- Monitor odor level and adjust output as required to control
The following formula and chart is suggested as a general guideline only. Use of the formula and chart will enable the user to determine the approximate milligrams per hour (MG/HR) of ozone required to odor situations. Ozone output will vary substantially with changes in temperature and humidity. AREA x ODOR FACTOR = MG/HR required PA1200 MG/HR (Milligrams per hour in dry air)
| OZONE OUTPUT AT SETTING
340 431 522 613 704 795 886 977 1068 1159 1200
LO 1 2 3 4 5 6 7 8 9 HI |
CUBIC METERS
- Measure the Cubic Meters (L x W x H) of the AREA being treated
- Estimate the ODOR FACTOR as follows: Light Odor Factor = 0.18 Medium Odor Factor = 0.65 Strong Odor Factor = 1.29
- Multiply the AREA by the ODOR FACTOR to determine the MG/HR on the chart below
- Set OZONE on the machine to the setting nearest the required MG/HR and adjust as required.
|
CUBIC FEET
- Measure the Cubic Footage (L x W x H) of the AREA being treated
- Estimate the ODOR FACTOR as follows: Light Odor Factor = 0.005 Medium Odor Factor = 0.018 Strong Odor Factor = 0.036
- 3. Multiply the AREA by the ODOR FACTOR to determine the MG/HR on the chart below
- Set OZONE on the machine to the setting nearest the required MG/HR and adjust as required.
|
| Example:
500 cubic meter room x 1.29 Strong Odor Factor = 709 MG/HR. Set OZONE at 4 (704 MG/HR) and adjust as required. |
Example:
20,000 cubic foot room x 0.036 Strong Odor Factor = 720 MG/HR. Set OZONE at 4 (704 MG/HR) and adjust as required. |
 |
